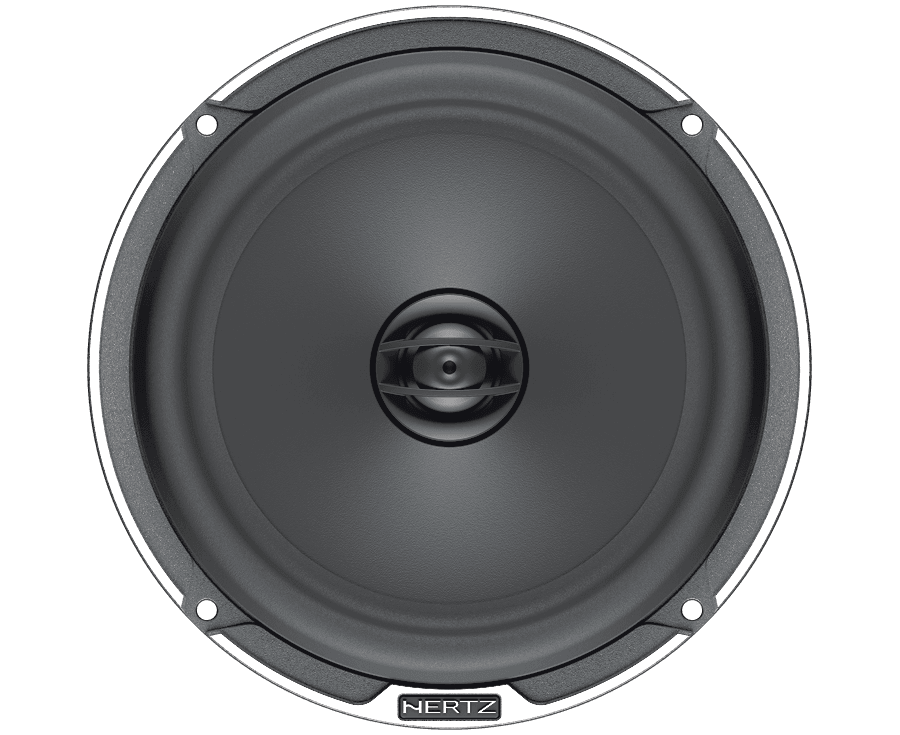

1. CONCENTRIC COAXIAL TWEETER: built in the woofer voice coil, achieving one single point of emission, to re-create the virtual sound-stage like in live music performances.
2. TWEETER SUPPORT WORKING AS A REAR CHAMBER: sized for low Fs, to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point.
3. 36 MM PURE COPPER WOOFER VOICE COIL: wound on a Polyamide former, for outstanding power handling and dynamic compression-free reproduction.
4. PRESSED-PULP CONE WITH COTTON FIBERS: combining stiffness and lightweight for a wide frequency response. Cone profile geometrically refined to perfectly match with the tweeter emission ensuring phase consistency in the crossover area.
5. "BOUNDARY FREE" RUBBER SURROUND: for improved efficiency and wider midbass frequency. (Logo Boundary Free)
6. OVER-SIZED FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.

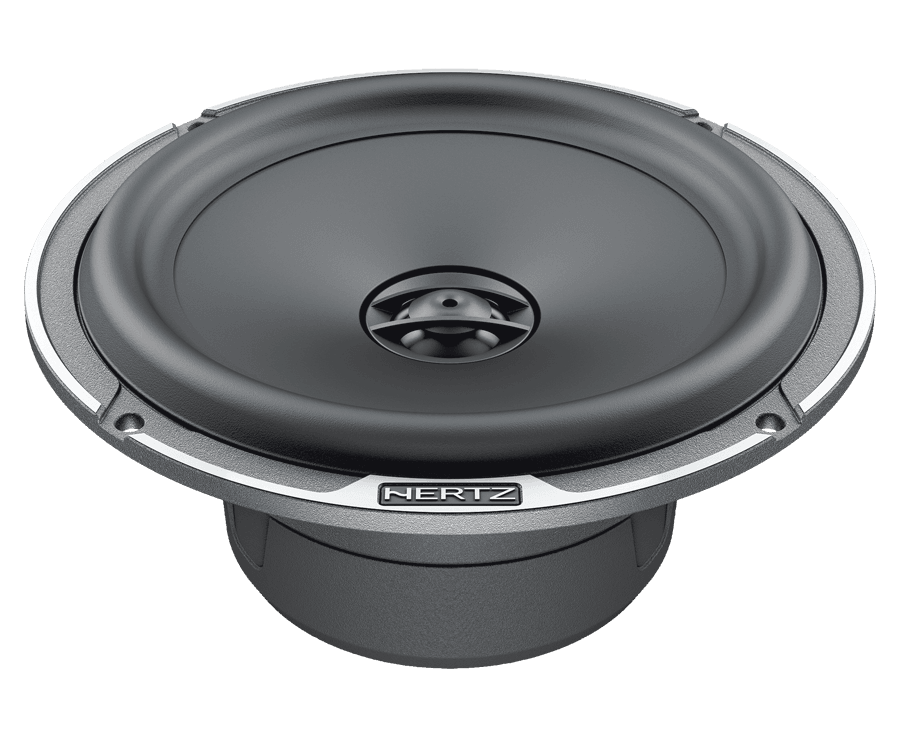

7. BASKET: low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.

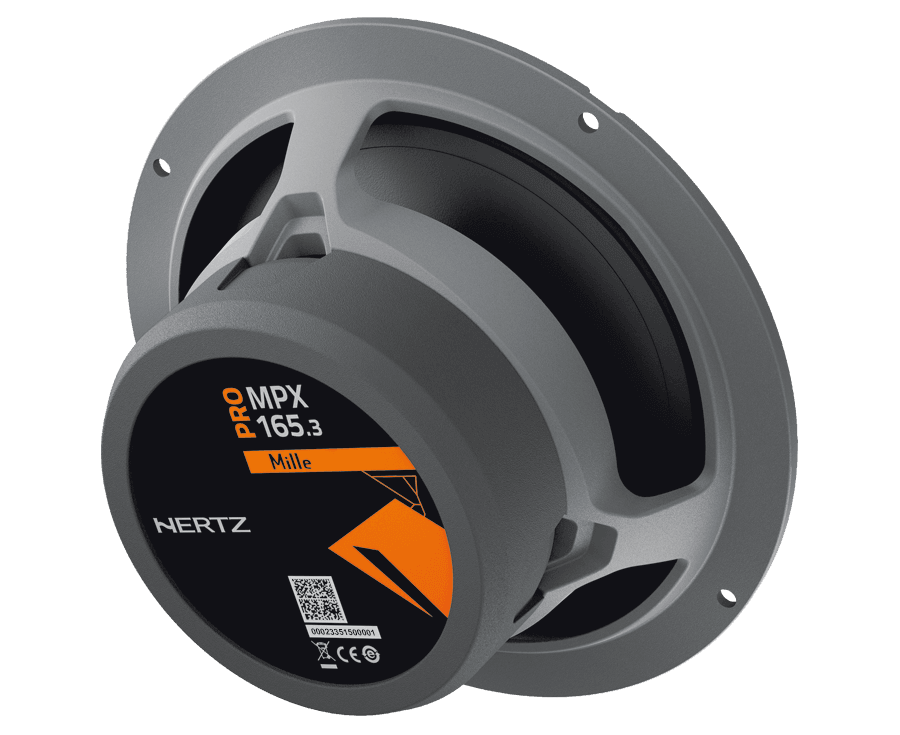

8. ANTI-VIBRATION RUBBER MAGNET COVER: to damp spurious vibrations.
Power Handling - Peak W 200
Power Handling - Continuous W 100
Frequency response Hz 45 ÷ 21,5k
Sensitivity dB SPL 92
Woofer size mm (in.) 165 (6.5)
Tweeter size mm (in.) 25 (1)
Woofer Voice Coil Ø mm (in.) 36 (1.42)
Tweeter voice coil Ø mm (in.) 20 (0.8)
Woofer magnet High density flux ferrite
Tweeter magnet Neodymium
Woofer cone Pressed-pulp cone with cotton fibers
Tweeter dome Tetolon
